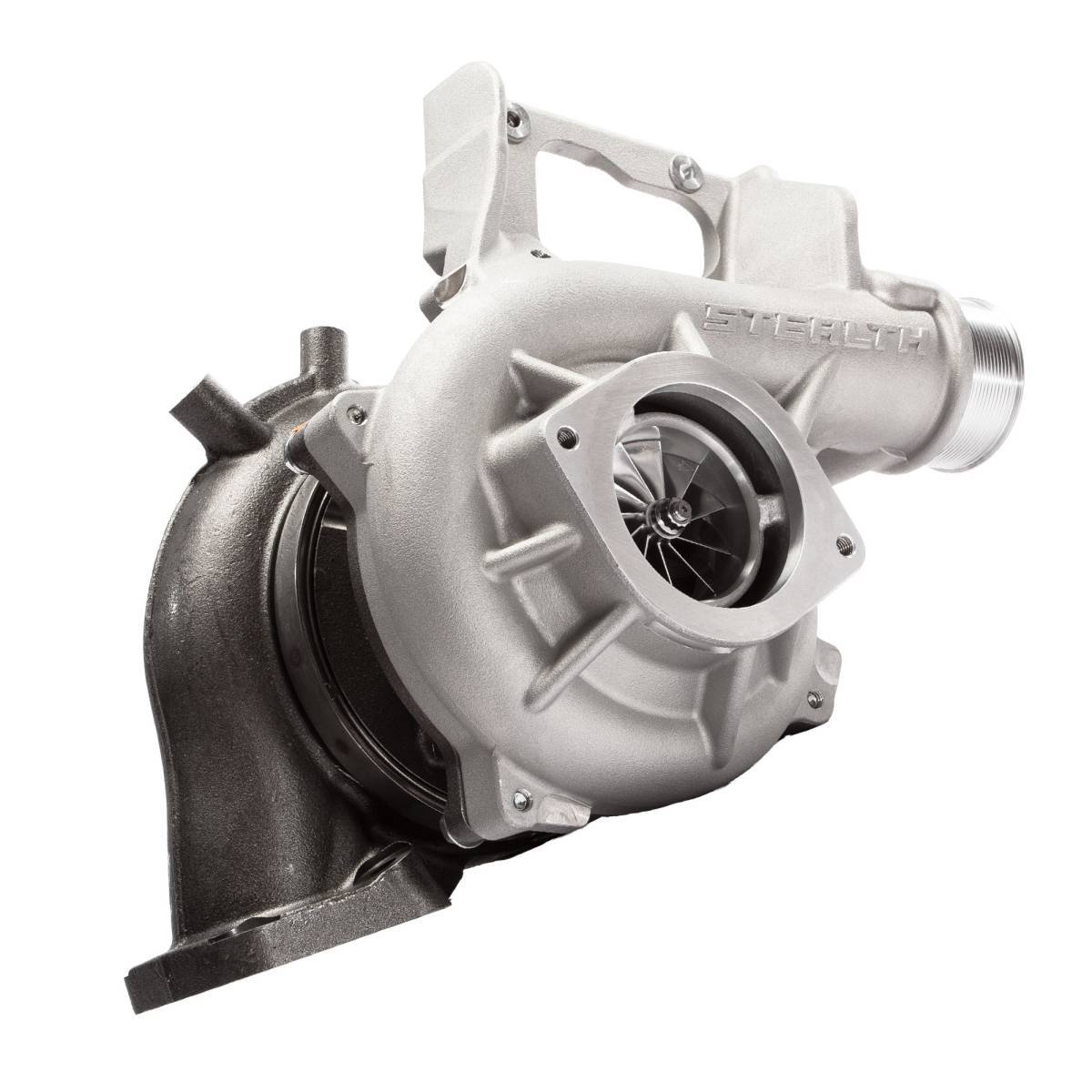

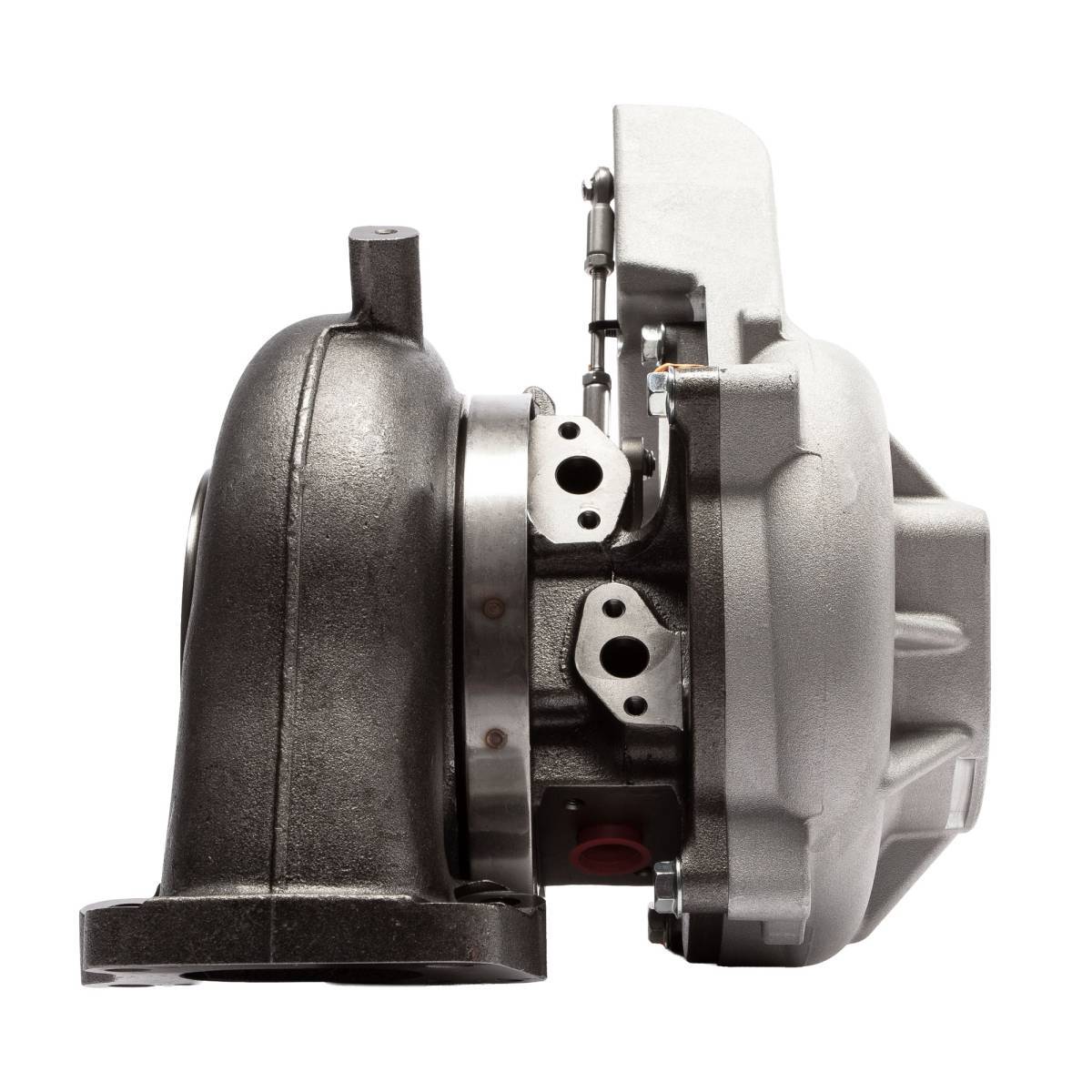

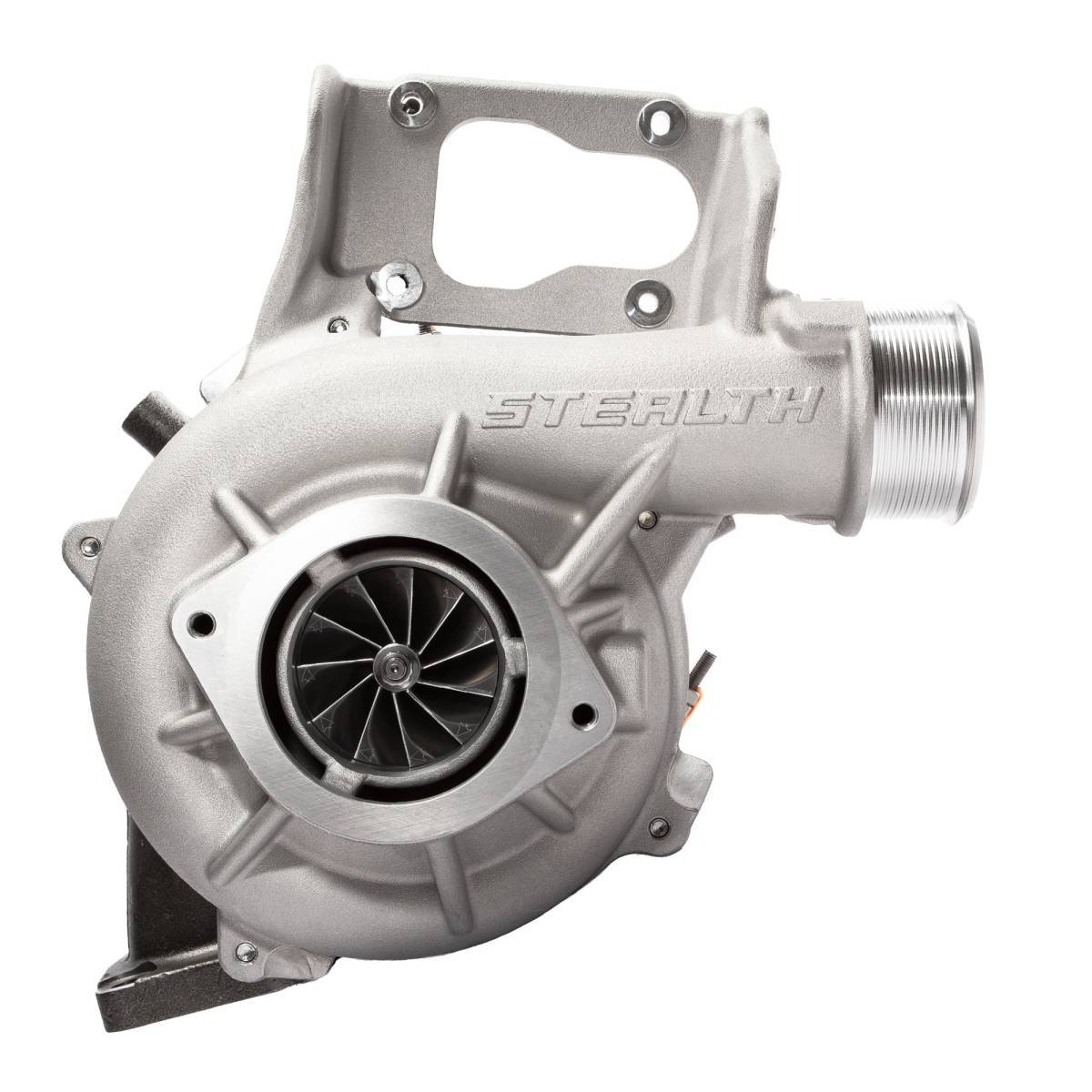

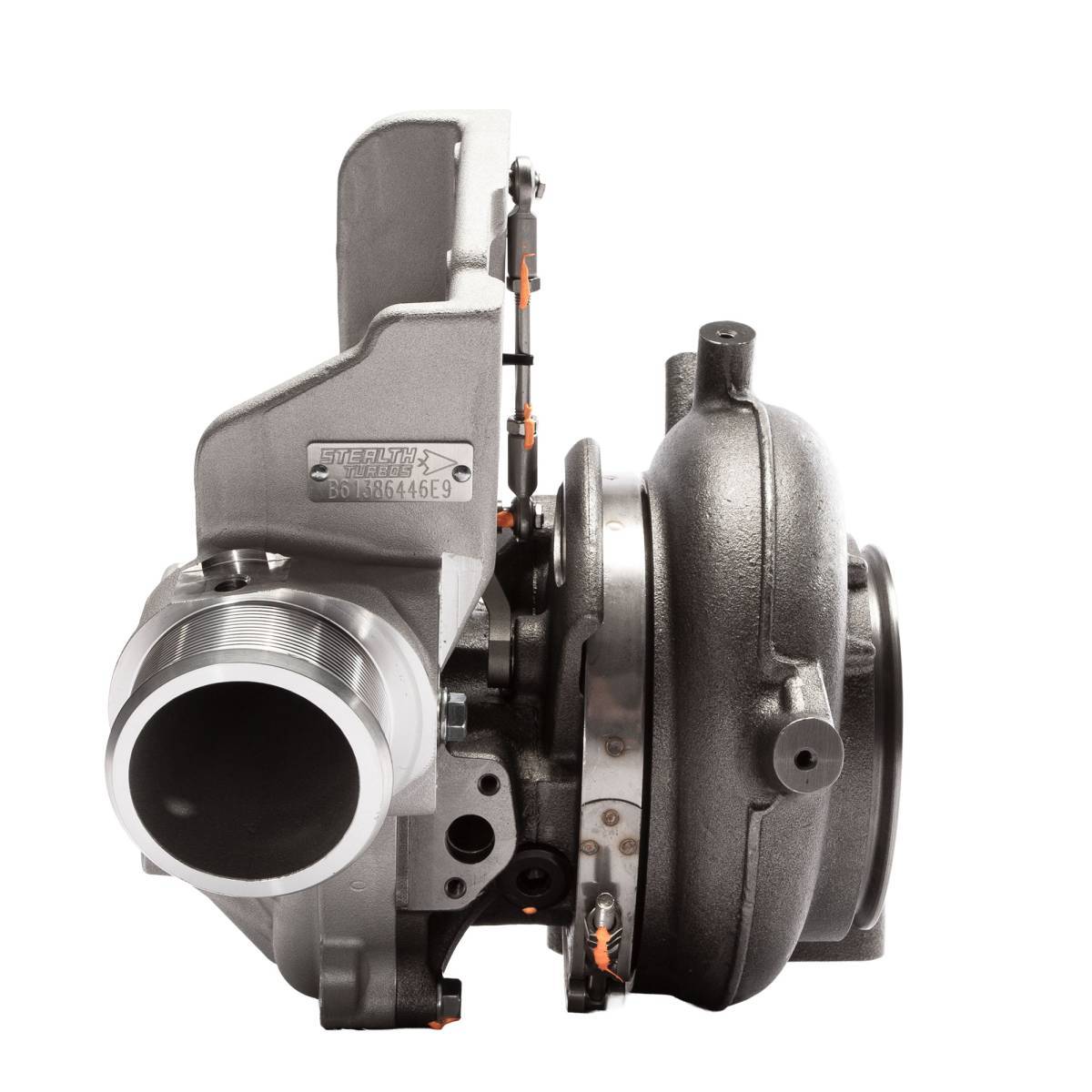

Duramax Power 2017-2023 L5P Duramax Stealth Mach 1 64mm Drop In VGT Turbo - CPS200275
- Airflow to support 700HP*
- *Up to 650 RWHP with Emissions Compliant Tuning and Basic Supporting Mods
- 41 psi Boost @ Sea Level

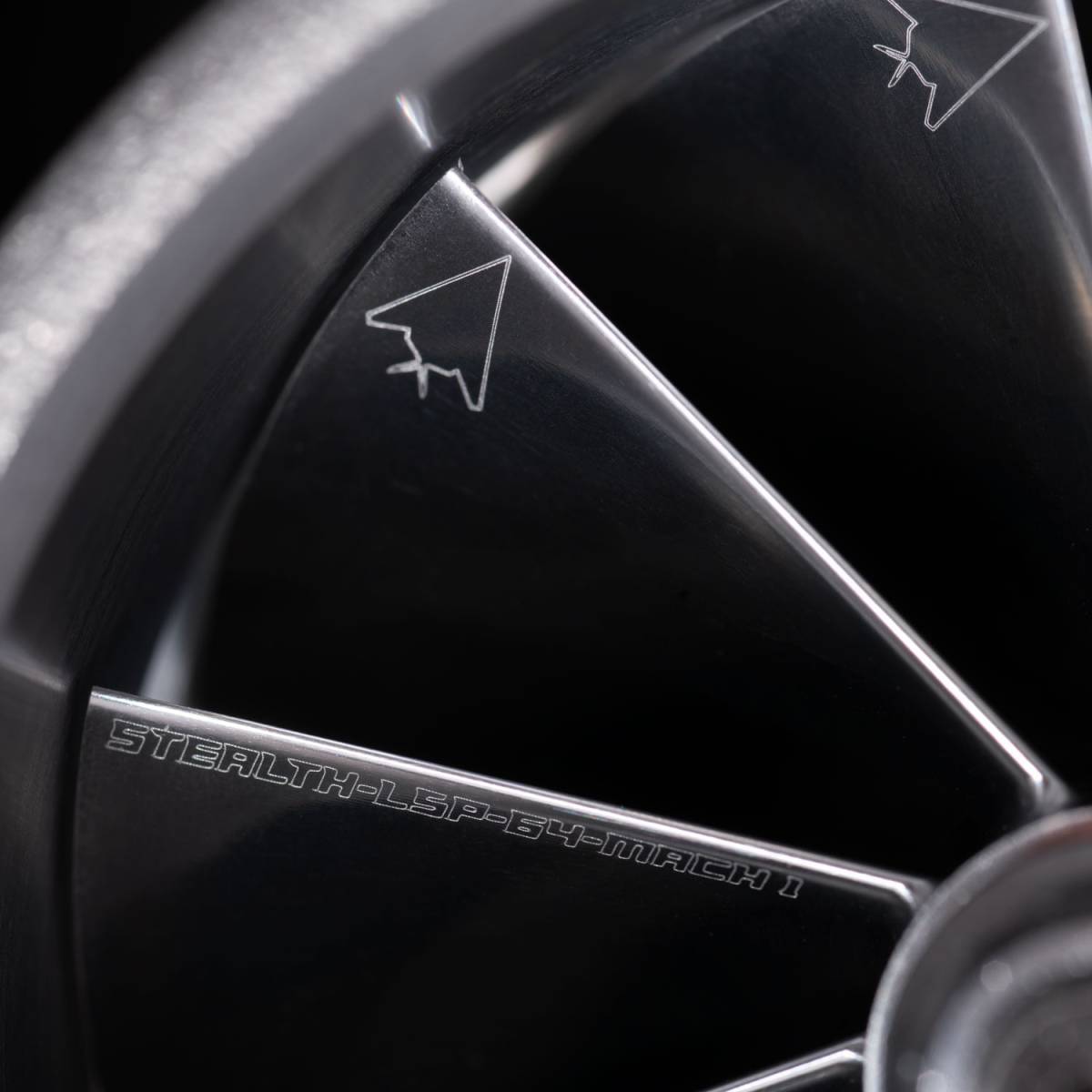

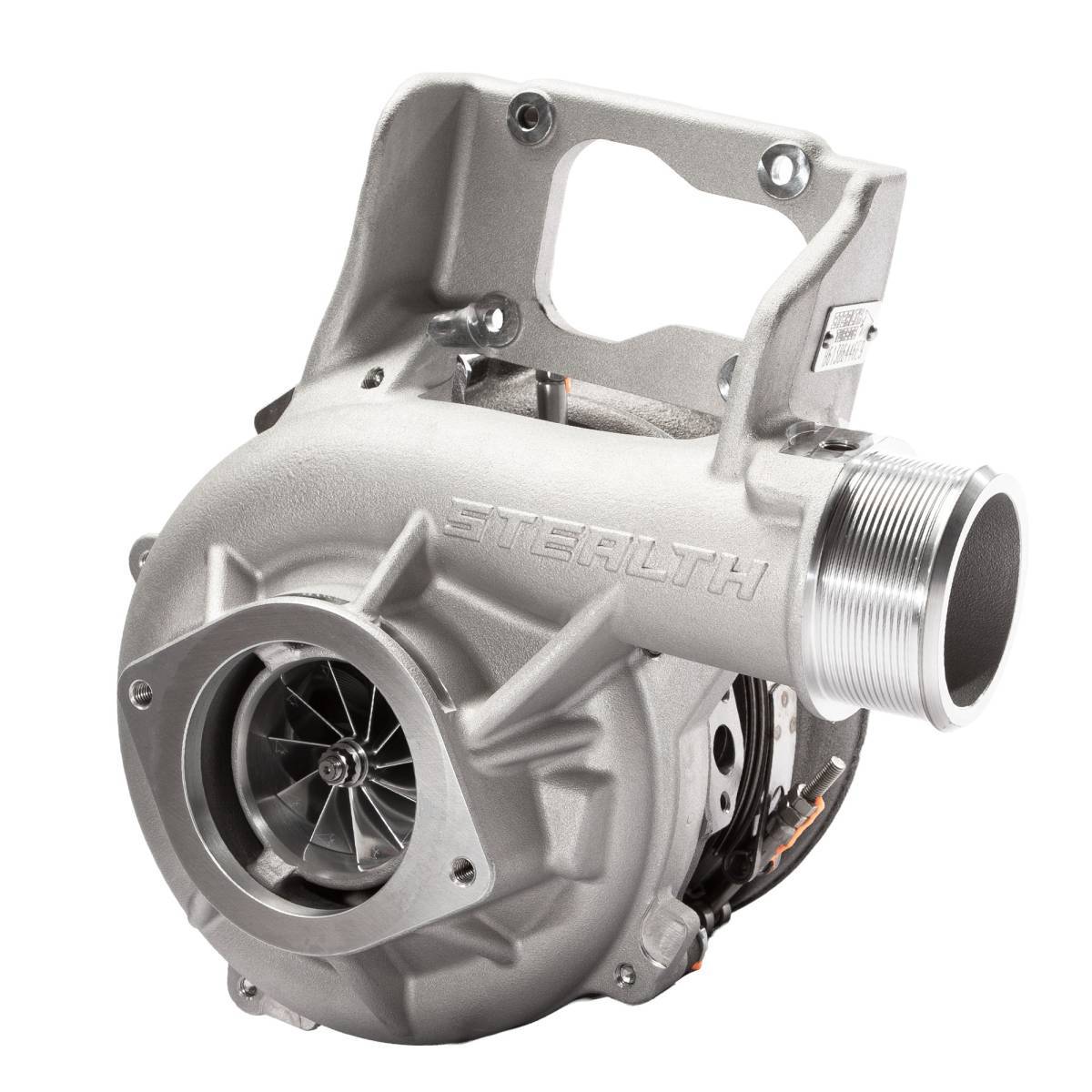

- Custom Billet 64mm 11-Blade Compressor Wheel - Lightweight and High Strength
- Wide Efficiency Range - Tow Without Risk of Surge
- Provides 74 lbs/min Mass Airflow Compared to 60lbs/min Stock
- No Surge (Even when lugging)

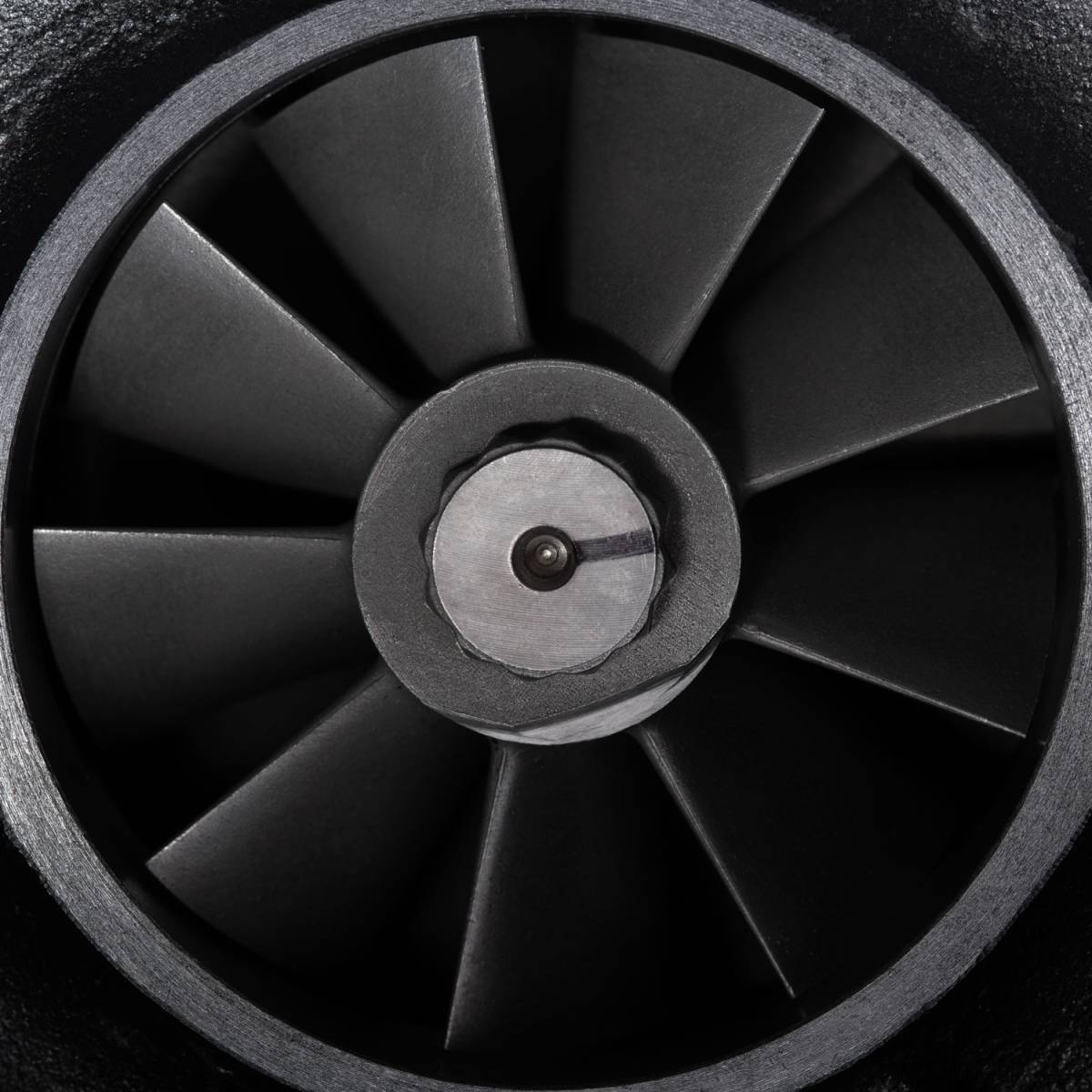

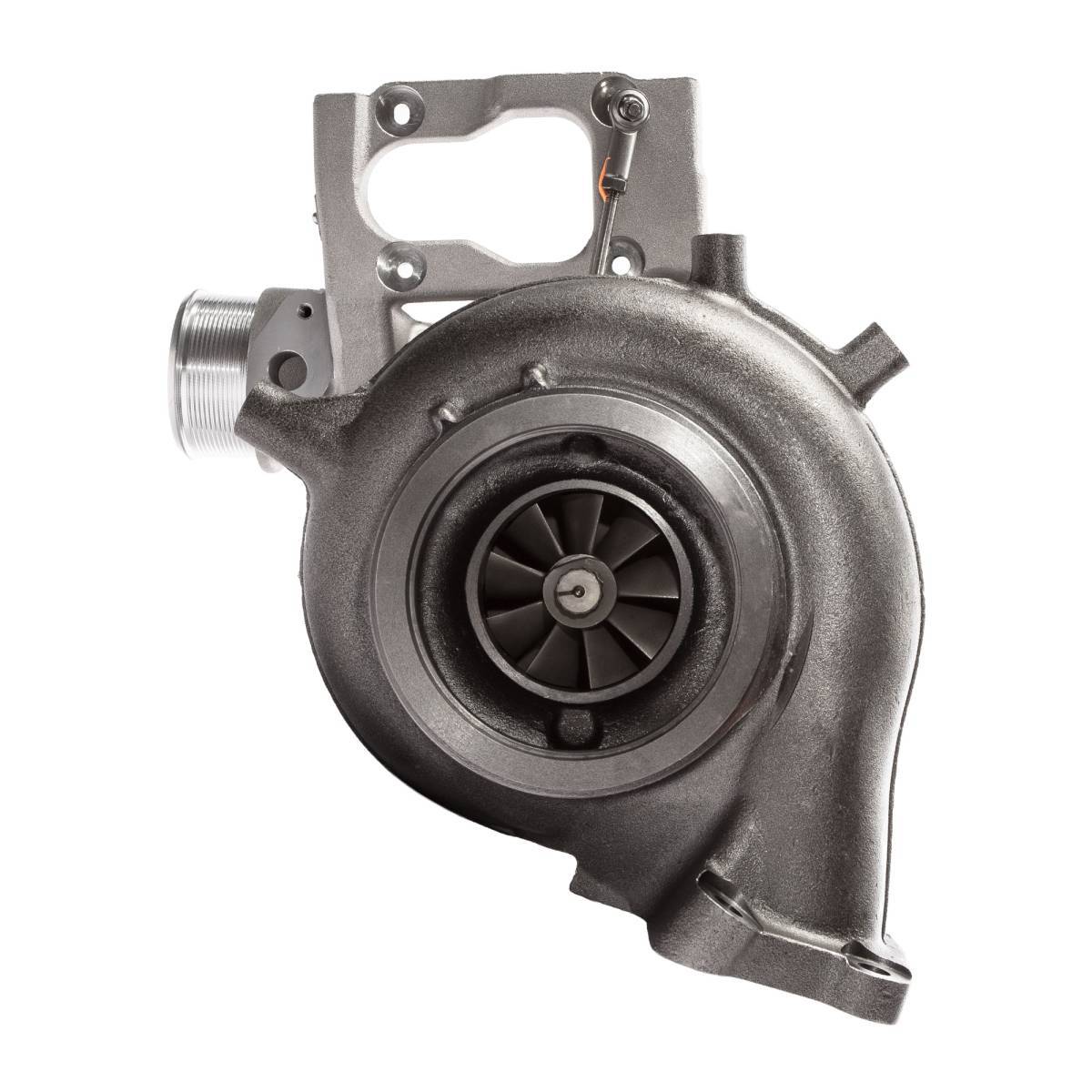

- 70.4mm - 9 Blade 713C - Nickel Alloy Turbine Wheel - Distinctive Exhaust Sound
- Low Drive Pressures at High Load - Better EGT control
- Brand New Parts - No Core Charges
- ACTUATOR SOLD SEPARATELY
- Supersedes models DM1JK1070203000, DM1MO1070203000, DM1JK1070203010, DM1MO1070203010
- SEMA Certified Emissions Compliant (Cert # SC-CPS01-0194)
Description
Stealth 64 VGT - L5P is an easy to install 700 rear wheel horsepower capable upgrade that spools up quickly, controls EGT's under heavy load, allows to turbine braking during towing scenarios, and kicks ass when leaned on. Building this line of Stealth's meant designing a turbo that would be safe to tow with, fun to drive every day, and perform at competitions. If you think street-able, clean, stock-appearing power is cool then this is the turbo for you!
Package includes:
- 700+ RWHP verified in competition applications with extensive supporting mods
- Up to 650 RWHP with stock emissions equipment and basic supporting mods
- Fits 2017-2022 Duramax L5P. Also compatible with 2019+ L5D.
- Stock Appearing Drop-In
- Completely bolt-on (fits just like your factory turbocharger)
This turbocharger features HFV technology! HFV or High Flow Vane technology is Calibrated's proprietary customization of the variable vane cage and nozzle ring assembly. This advancement allows the use of a larger turbine wheel for maximum high-load efficiency. Stealth turbos featuring Calibrated's HFV upgrade are capable of producing more power, spooling up quicker, and managing EGTs better than those limited with factory nozzle rings.
This turbo is designed for you if you...
- Already have, or plan on installing custom tuning
- Daily drive your truck
- Have Reliability and Performance as top priorities
- Tow with your truck
- Want More Power and excellent street manners!
DO YOU NEED AN ACTUATOR?
If you're wondering whether or not you should buy an actuator to compliment your Stealth turbo, allow us to share our thoughts. The L5P actuator has a very low failure rate in the field. The fact that it's well-cooled and not in close proximity to the hot parts of the turbo means that it's out of harm's way. Unless you're experiencing codes that indicate actuator issues or know for a fact that your actuator is somehow damaged, we would suggest saving your money and retaining your factory actuator.
NOTE: You should strongly consider custom tuning to go with this turbocharger upgrade. We have made up to 650 RWHP when matching this turbo with Emissions Compliant Tuning.
Replaces the following GM Part #s: 12709701044, 11547786, 12683985, 12689094
Supersedes models DM1JK1070203000, DM1MO1070203000, DM1JK1070203010, DM1MO1070203010
Details
- CPS200275
- CPS200275
- Duramax Power
- New
Categories
Shipping Information
- Item Requires Shipping
- 55.0 lbs.
- W16.0000” x H16.0000” x L16.0000”
- Free Ground shipping - lower 48 U.S. only
- This item ships in its own box.
