Duramax Power 2004.5-2010 LLY/LBZ/LMM Duramax Stealth STR Drop In VVT Turbo - CPS200130

(0) Reviews: Write first review
CPS200130

- Proven to support up to 650 RWHP
- 61mm - 7+7 Blade Extended Tip Billet 2618 Aluminium Alloy Compressor Wheel
- 66.5mm - 10 Blade 713C - Nickel Alloy Turbine Wheel
- 11mm Vane Height for Max Spool Up (LML Vane Height)
- Lower average EGTs and better overall EGT control
- Designed to prevent turbo surge even when towing heavy loads
- No Tuning Required
- Works with stock trucks but also responds well to box tuners and custom tuning
- Light-weight rotating assembly provides stock feeling spool-up & immediate throttle response
- Brand New Parts - No core charges
- 12-month Warranty
- Supersedes DM16B1070103000

Availability:
Pricing: $2,149.00

Customize Your Item

- Powder Coating -
 * required
- VGT Turbo Heat Blanket -
 * required
- Gasket Kit -
 * required
- VGT Exhaust Housing Finish -
 * required
- Model Year -
 * required
- 01-16 Duramax Up Pipe / LB7 Bolt -
 * required
- LLY LBZ LMM 3 Inch Downpipe -
 * required
Qty:
Free Ground shipping - lower 48 U.S. only

Description

Specifically designed for the 2004.5-2010 Chevy Silverado and GMC Sierra 2500 or 3500 with the 6.6L Duramax diesel engine. The Stealth STR turbocharger is the ultimate solution for those in search of an affordable and reliable factory turbo replacement that also offers some noticeable improvements to performance. The Stealth STR is a direct drop-in replacement, meaning no custom modifications or tuning are required, making it an easy and hassle-free installation.

Whether you’re towing, daily driving, or exploring the country, this turbo is engineered for you. If improved reliability, better EGT control, and additional performance are some of your top priories, the Stealth STR has you covered. Upgrade smarter with the Stealth STR and experience the perfect balance of affordability, reliability, and performance today!
  • Airflow to support 650HP
  • Up to 650 RWHP with stock emissions equipment and basic supporting mods
  • Upgraded Turbine Vanes
  • 11mm tall vanes
  • Optimized for ideal boost to drive pressure ratios
  • Retain factory exhaust brake and quicker throttle response

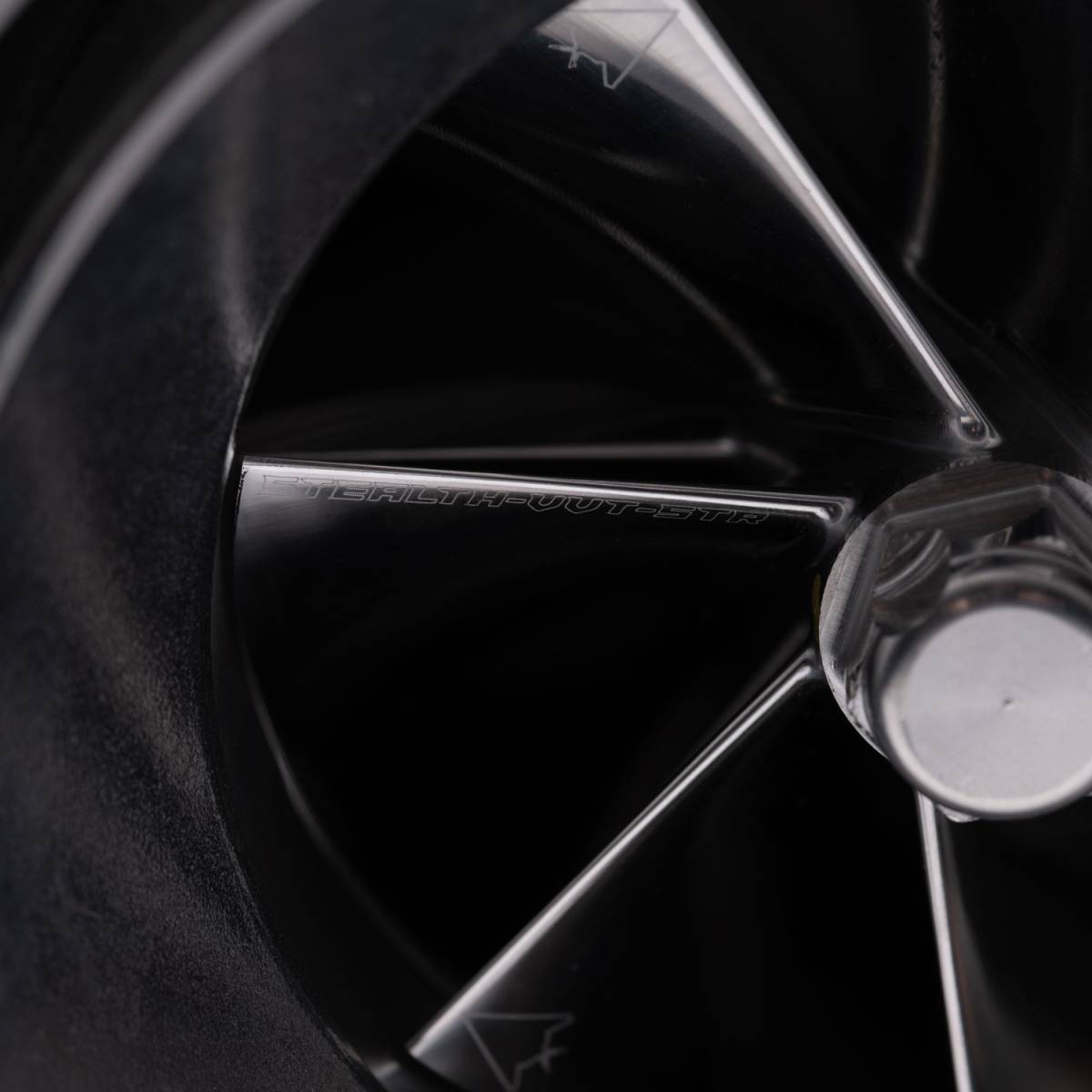

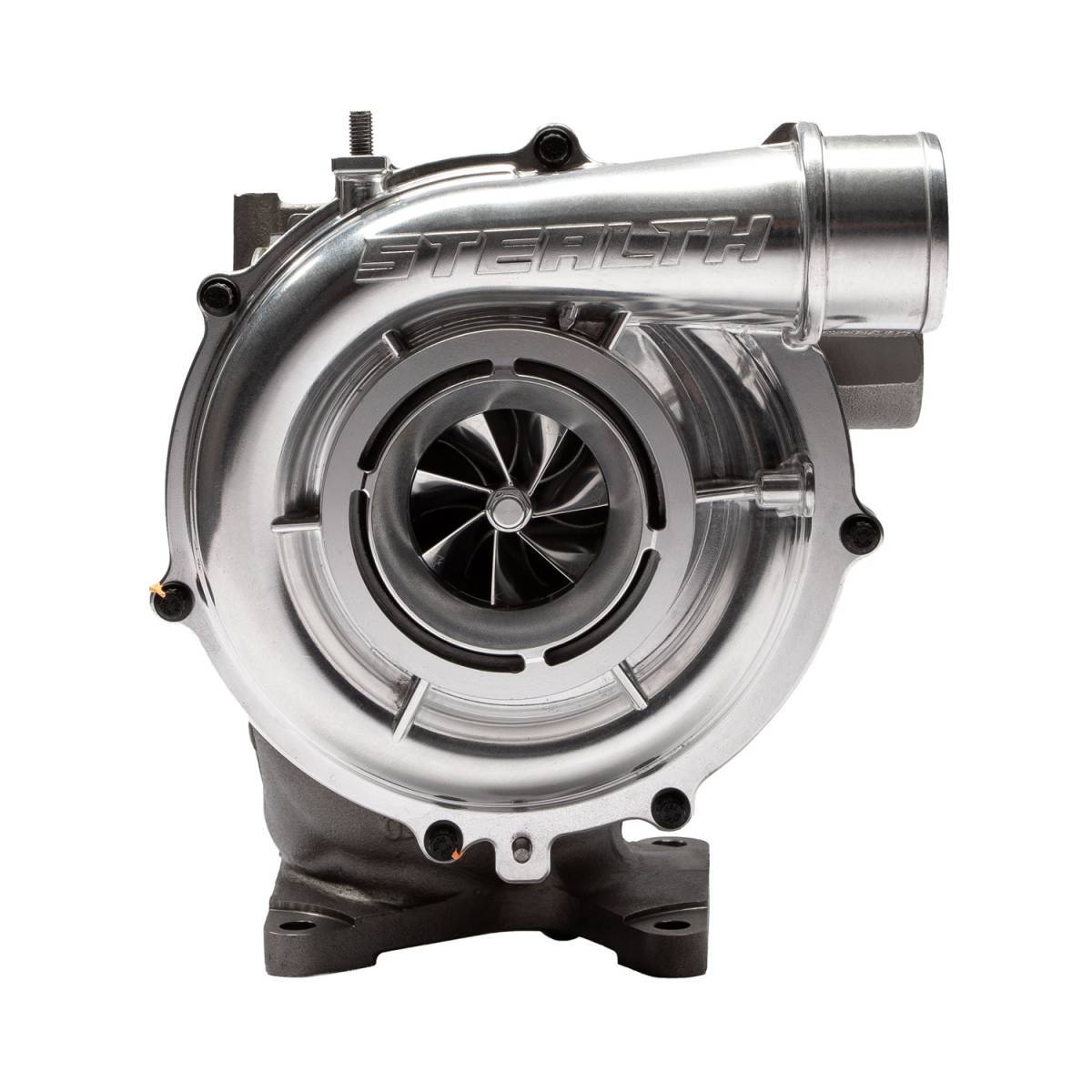

  • Custom Billet Compressor Wheel
  • 7x7-Blade extended tip wheel provides big air and a wide efficiency range
  • Tow without the risk of turbo surge (even while lugging)
  • Lightweight and high strength billet aluminum construction
  • Provides 67lbs/min mass airflow compared to 59lbs/min stock

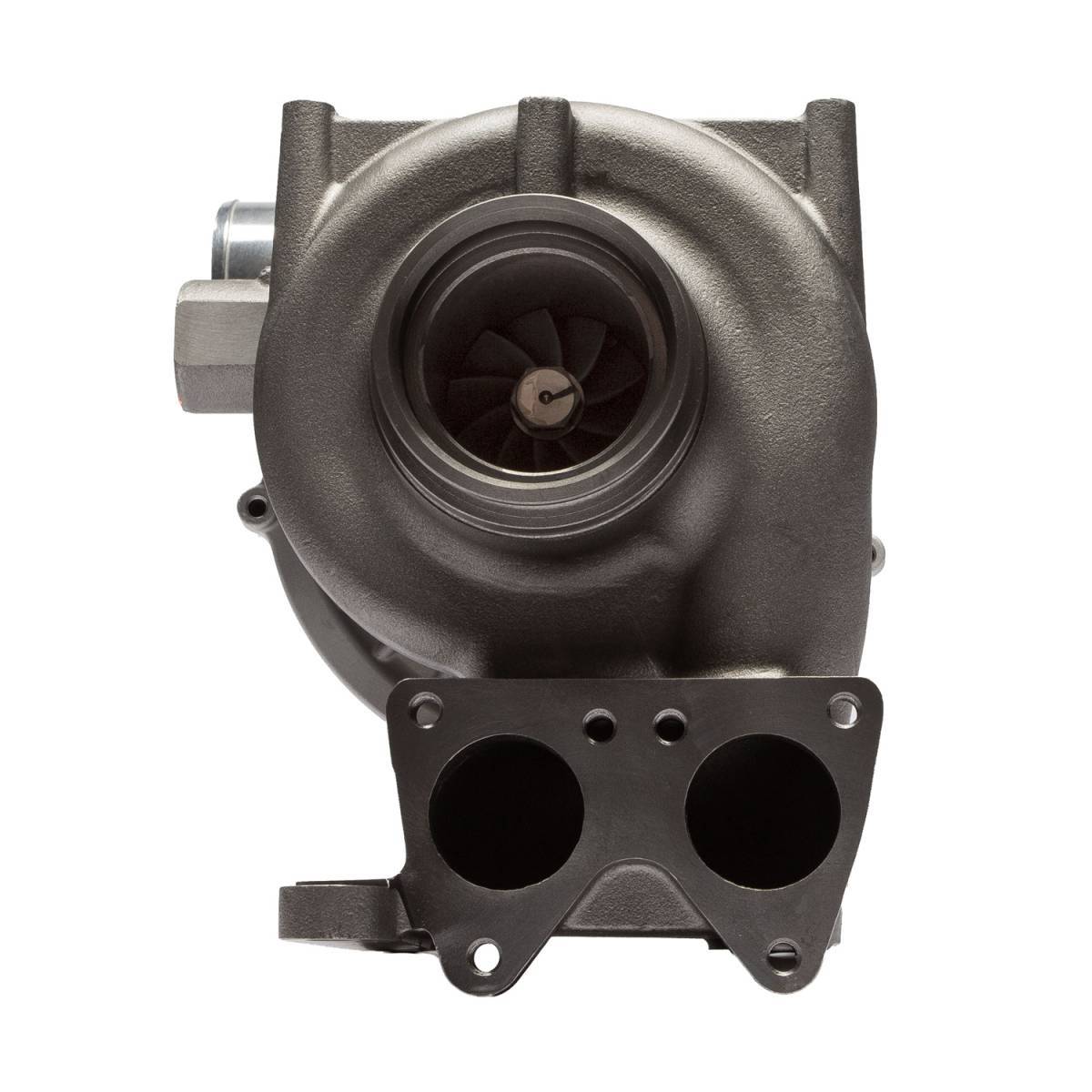

  • Oversized Custom Turbine Wheel
  • Custom high flow design for peak efficiency
  • Thicker, more durable and temp resistant turbine blades
  • Lower drive pressures under high load scenarios
  • Better EGT control than stock
  • 10-blade design produces a distinctive exhaust sound
  • Brand New Parts
  • 360-degree Thrust Bearing
  • Direct Bolt-On
  • No Core Charge

    •

    To compliment this turbo we highly recommend our High Flow Intake Bundle Kit to maximize performance, EGT control, and spool up.

    Replaces the following OEM Part Numbers: 736554-5014, 736554-0011, 736554-5011, 736554-9011, 736554-0001, 736554-5001, 736554-9001, 736554-0002, 736554-5002, 736554-9002, 736554-0003, 736554-5003, 736554-9007, 736554-9008, 736554-9014, 736554-9003, 736554-0004, 736554-5004, 736554-9004, 736554-0005, 736554-5005, 736554-9005, 736554-0006, 736554-5006, 736554-9006, 736554-0007, 736554-0008, 736554-0014, 790032-9003, 7900329003, 19329915, 97387896, 98011735, 98021617, 98065854, 12639460, 736554-5015, 736554-9015, 759622-5005, 759622-9005, 763333-5005, 763333-9005, 790032-5004, 790032-9004, 848212-5001, 8482125001, 848212-900, 8482129001, 98011735, 19329916, 98021617, 98065854, 8980033661, 8980033662, 8980117351, 98003366, 759622-5006, 759622-9006, 759622-5, 759622-0002, 759622-5002, 759622-9002, 759622-5005, 759622-0005, 759622-9005, R759622-5005, R759622-9005, 848212-5001, 8482125001

    Details

    Categories

    Shipping Information

    • Item Requires Shipping
    • 53.0 lbs.
    • W16.0000” x H16.0000” x L16.0000”
    • Free Ground shipping - lower 48 U.S. only
    • This item ships in its own box.
