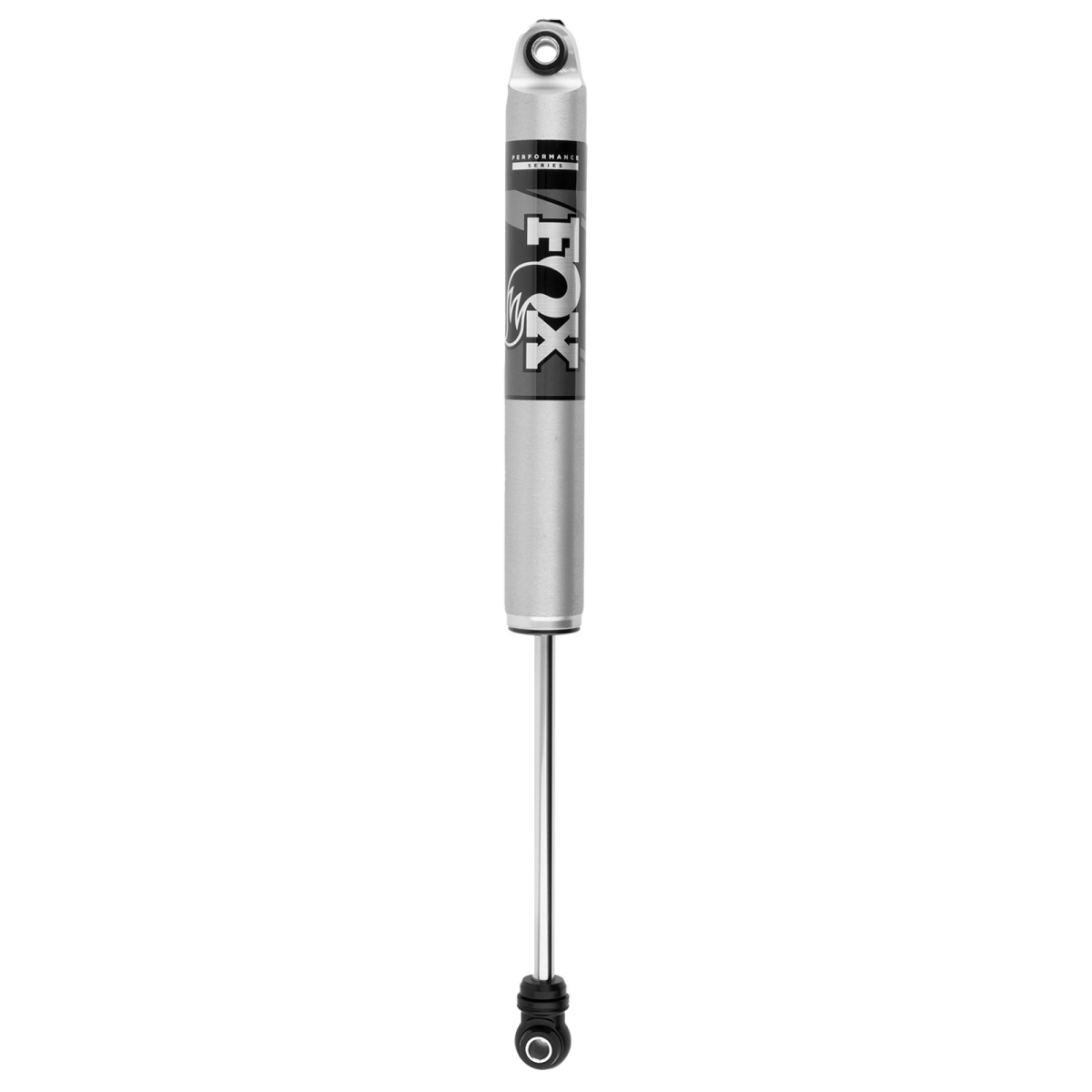

BDS FOX 2.0 IFP Rear Shock | 1.5-3 Inch Lift | Performance Series | Chevrolet Silverado and GMC Sierra 2500HD (20-26)

Upgrade the on-road comfort and off-road control of your 2020-2026 Chevy Silverado or GMC Sierra 2500HD / 3500HD to FOX Performance Series 2.0 IFP (internal floating piston) rear shocks. Designed to fit a BDS 1.5-3-inch lift suspension kit. The mono-tube design's internal reservoir separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving.

FOX and BDS joined forces to custom valve each application to work perfectly with each BDS Suspension system. Based on FOX race products but re-designed to turn your BDS-equipped truck into an off-road machine providing a predictable ride - capable of handling the roughest conditions with fade-free performance.

• 2-inch Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
• 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Internal IFP mono-tube reservoir design

Adjustable Damping : No
Compressed Length : 17.1
Extended Length : 26.72
Finish : Clear-anodized
Gas Charged : Yes
Lift Height : 2-3.5"
Lower Mount Code : EB1
Lower Mount Type : Eyelet
Position : Rear
Shaft Diameter : 5/8"
Travel Length : 9.62
Type : Smooth Body IFP
Upper Mount Code : EB1
Upper Mount Type : Eyelet
