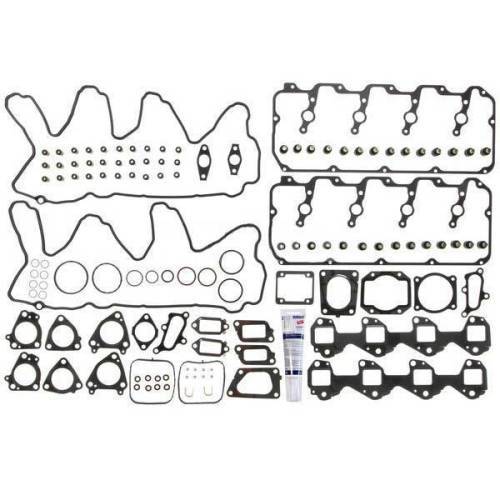

DURAMAX HEADGASKET KIT
016-HS54580C
Solve Common Duramax Issues with one Kit
Upper and Lower Valve Cover Seals and Gaskets
Exhaust Manifold Gaskets
Up Pipe Gaskets
Turbo Oil Feed ad Drain Gaskets
EGR Cooler and Emission Gaskets
Throttle Valve and Grid Heater
Coolant Crossover and Thermostat Housing Seals
Y-Bridge and Intake Seals/Sealant
Valve Cover Grommets
Valve Stem Seals
Water Pump and related Bypass O-rings

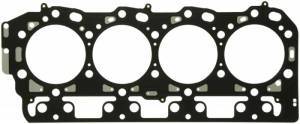

Grade "C" head gaskets
Upper and Lower Valve Cover Seals and Gaskets
Exhaust Manifold Gaskets
Up Pipe Gaskets
Turbo Oil Feed ad Drain Gaskets
EGR Cooler and Emission Gaskets
Throttle Valve and Grid Heater
Coolant Crossover and Thermostat Housing Seals
Y-Bridge and Intake Seals/Sealant
Valve Cover Grommets
Valve Stem Seals
Water Pump and related Bypass O-rings
Grade "C" head gaskets
Pricing:
$476.90
Description
This is the complete upper end gasket kit. This kit is very popular for customers doing injector jobs and/or head gaskets. Head gaskets and head bolts are not included in this kit but can be added in the menu above.

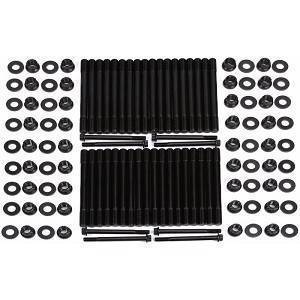

DHD always recommends upgrading your cylinder head hardware to studs. DHD's 8740 Chromoly Head Studs are an excellent alternative to high priced ARP studs and work awesome in trucks under 800HP.
Its important to always have your cylinder heads crack checked and surfaced prior to reassembly. Work closely with your machine shop, you'll have to select your head gasket based on how much material they remove from the head surface. As a rule of thumb any head surface that has had more then .004" removed generally requires a thicker grade D gasket. Other variables, such as piston protrusion, and valve head height also contribute to selecting the correct head gasket.
DHD always recommends upgrading your cylinder head hardware to studs. DHD's 8740 Chromoly Head Studs are an excellent alternative to high priced ARP studs and work awesome in trucks under 800HP.
Its important to always have your cylinder heads crack checked and surfaced prior to reassembly. Work closely with your machine shop, you'll have to select your head gasket based on how much material they remove from the head surface. As a rule of thumb any head surface that has had more then .004" removed generally requires a thicker grade D gasket. Other variables, such as piston protrusion, and valve head height also contribute to selecting the correct head gasket.
Details
- 016-HS54580C
- 016-HS54580C
- 124554777
- GI Parts and Bundles
- New
Categories
Shipping Information
- Item Requires Shipping
- 20.0 lbs.
- W26.0000” x H12.0000” x L12.0000”
- Free Ground shipping - lower 48 U.S. only
