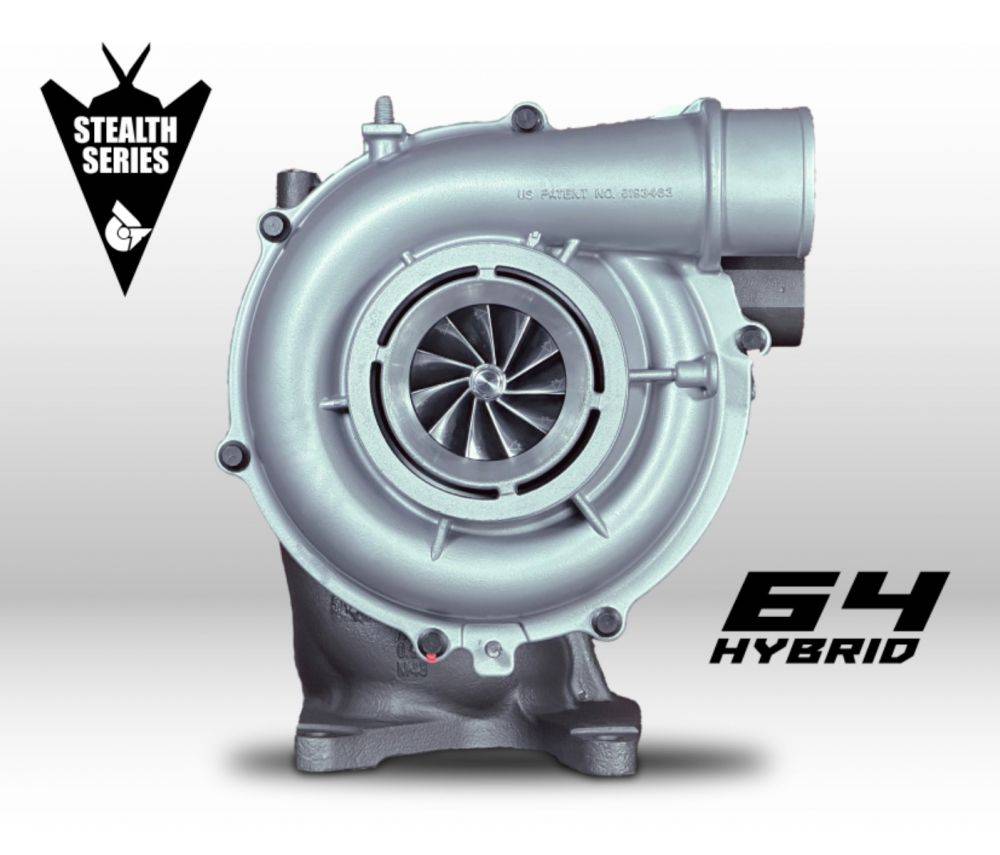

LML Stealth 64 Hybrid Turbo

The LML Stealth Mach 1 Hybrid is a specialized stock appearing, direct replacement for your 2011, 2012, 2013, 2014, 2015, and 2016 LML Duramax. Specifically designed for Sled Pulling and Compound Turbo applications due to its unique configuration. This turbo features all the guts of our most powerful (67mm) Mach 2 turbo, but with the slight teak of utilizing our smaller 63mm Air grabber compressor wheel. This was done to create the most optimized primary compound turbo offering on the market. This turbo is also a great option for those limited to a 64mm compressor wheel due to competition regulations and who want to make the most out of their top-end performance.

While upgrades found in the Mach V such as HFV (High Flow Vane technology) & our extra-large turbine wheel are not ideal for low end power or spool up. The improvement in flow that they do offer can directly result in an increase in top-end performance. This increase in flow is also ideal for passing as much of the additional exhaust gas energy as possible on to the turbine of a secondary turbo in a compound setup. Further helping to increase compound turbo setup efficiency and performance. Not only that but increased exhaust side flow from upgrades such as our HFV, our upgraded turbine wheel, and ported exhaust housing can significantly help in managing EGTs while under load.

The unique advantage of this turbo's design cannot be understated. Aided by insight from our tuning experts DuramaxTuner’s experience with the LML Duramax platform and how it responds to tuning adjustments, changes in airflow, and increased power was a crucial component in building you the perfect primary compound turbo.



FEATURES

63mm Air Grabber Compressor Wheel
Air flow to support 650rwhp (dynojet)
Supports 600rwhp with emissions in-tact and tuning
11-blade design provides a wide efficacy range
Weight and size optimized for top-end efficiency
Featuring the latest advancements in compressor wheel technology
Air Grabber Technology for even more airflow
Made out of aerospace-grade billet aluminum


Beast Wheel™ Turbine Wheel
10% larger wheel for increased airflow and lower EGTs
Custom 10-blade design provides improved flow characteristics over stock
Signature Stealth turbo whistle
Made out of high-quality Inconel 718
Better durability than stock


HFV Technology (High Flow Vanes)
Designed taller for less turbine nozzle restriction
Designed wider for improved exhaust-flow dynamics
Helps to maintain lower EGT's under high load
Machined out of high-quality billet 310 stainless steel

Exhaust Housing
Machine-ported down pipe opening for improved exhaust flow in
Machine-ported up-pipe inlets for improved exhaust flow out
Helps to maintain lower EGT's under high load


Other Upgrades
360˚ Thrust bearing
Heavy-duty journal bearings


Stealth Turbo Benefits
Absolutely no core charges
Brand new parts and accessories
1-year warranty on all of our turbos
Extended warranties available
Live on-site customer support team here to help


This Turbo is Designed for you...
Daily drive your truck
Reliability and Performance are your top priorities
Tow with your truck
Prefer to simply swap your old turbo out for a new one
Want more power when you need it, but still have excellent street manners.
