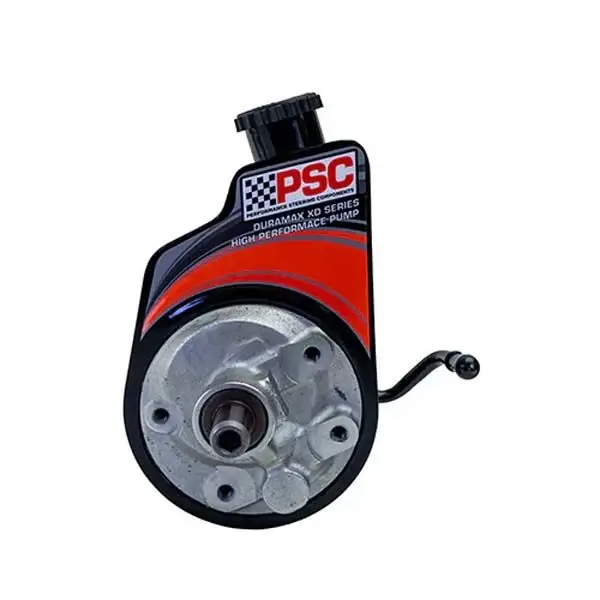

PSC 01-10 GM 6.6 DURAMAX PUMP KIT
SP1404
1996 - 2010 GM 1500/2500/3500 with Hydroboost Braking System
2001-10 GM Duramax with Hydroboost Braking System
1980 and Up Modified Applications using GM LS/Duramax Engine Conversion and/or Hydroboost Braking System and brackets for Saginaw P-Pump
2001-10 GM Duramax with Hydroboost Braking System
1980 and Up Modified Applications using GM LS/Duramax Engine Conversion and/or Hydroboost Braking System and brackets for Saginaw P-Pump
Pricing:
$275.00
Description
The heart of any modern power steering system is the pump. PSC offers a full range of new power steering pumps, covering most applications from American Muscle Cars to vintage and newer Jeeps, and most models of Dodge, Ford, and GM Trucks. We even have a solution for those Rock Crawling rigs that operate at very low engine RPMs and are equipped with extensive steering modifications.
A variety of modified pumps are also available to cover severe-duty Full Hydraulic Steering applications, including applications with front and rear steering cylinders.
For vehicles without hydroboost, click here
Don't see what you need or need help making a decision on which product is right for your project?
SPECIFICATIONS:
Power Steering Pump Model: Saginaw 132 Inch Series
Pump Flow: High Volume
Pressure Rating: 1600 PSI
Pump Finish: Satin Aluminum
Reservoir Included: Yes
Pulley Included:No
Pulley Attachment Style: Press Fit
Fittings Included: No
Inlet Attachment: Flared Tube
Inlet Quantity: Two (2)
Inlet Size: 5/16 Inch
Outlet Attachment: 16MM Male
Outlet Quantity: One (1)
Outlet Size: 16MM-1.50 Female
Reservoir Style: OEM Attached for Hydroboost with Cap
A variety of modified pumps are also available to cover severe-duty Full Hydraulic Steering applications, including applications with front and rear steering cylinders.
For vehicles without hydroboost, click here
Don't see what you need or need help making a decision on which product is right for your project?
SPECIFICATIONS:
Power Steering Pump Model: Saginaw 132 Inch Series
Pump Flow: High Volume
Pressure Rating: 1600 PSI
Pump Finish: Satin Aluminum
Reservoir Included: Yes
Pulley Included:No
Pulley Attachment Style: Press Fit
Fittings Included: No
Inlet Attachment: Flared Tube
Inlet Quantity: Two (2)
Inlet Size: 5/16 Inch
Outlet Attachment: 16MM Male
Outlet Quantity: One (1)
Outlet Size: 16MM-1.50 Female
Reservoir Style: OEM Attached for Hydroboost with Cap
Details
- SP1404
- SP1404
- GI Parts and Bundles
- New
Shipping Information
- Item Requires Shipping
- 12.0 lbs.
- W7.0000” x H10.0000” x L10.0000”
- Free Ground shipping - lower 48 U.S. only
